1.The MACRVIGOR intelligent cutting slot raise-boring machineemploys a mechanical rock-breaking method. It uses a roller cone bitfor pilot drilling, followed by a reaming cutter head that fractures therock in a single-pass raising process, and boasts the advantages ofsafety, high efficieney, low cost and good finished shaft quality.;
2.High-strength steel with a yield strength of 1,000 MPa is selectedfor structural parts, featuring lightweight and compact design, andflexible operation;
3.The hydraulic crawler chassis is self-lubricating and mainte-nance-free, with excellent ground adhesion characteristics andwet-type hydraulic braking mechanism, allowing for three-speedtransmission, in-situ turning and other functions. The machine is suit-able for long-distance climbing and high-load travel;
4.Designed with a modular structure, the machine can be disassem-bled into sections under 3 meters for rapid assembly and convenientcage transportation;
5.Alloperations support dual-mode drive between wircless/vired remote control and lever control, allowing for fre swiching and mutual backup for high Reliability.
| Item | Unit | Parameter | |
| Rotation parameters | Rotation speed | r/min | 30(Pilot hole boring) / 15(Broaching) |
| Rated torque | kN.m | 53 | |
| Feed parameters | Feed force for pilot hole boring/broaching | kN | 1200 |
| Pull-back force | kN | 1200 | |
| Construction parameters | Upward pilot hole diameter | mm | 280 |
| Maximum raise diameter | mm | 560(Upward boring) | |
| Maximum raise depth | m | ≤120(Pilot hole boring / Upward boring) | |
| Downward reaming | mm | 1500(Optional) | |
| Reaming depth | m | ≤120 | |
| Deflection angle | ° | 60~90 | |
| Power pack parameters | Rated voltage | V | 380/660/1000 |
| Rated motor power | kW | 75 | |
| Diesel engine power | kW | 53 | |
| Emission | / | Non-road mobile machinery China IV | |
| Tramming parameters | Tramming in low gear | km/h | 1.5 |
| Tramming in high gear | km/h | 3 | |
| Gradeability | ° | ≥14 | |
| Ground clearance | mm | ≥200 | |
| Control mode | / | Wireless remote control + lever control | |

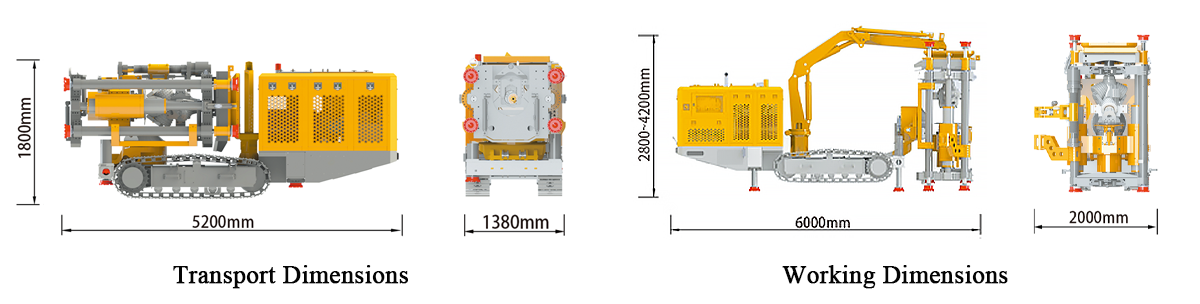

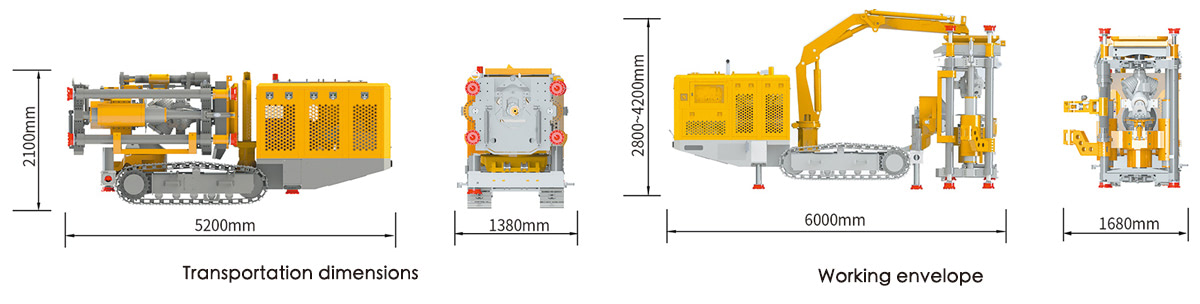

| Machine parameters | Dimensions for tramming (length × width × height) |
mm | 5200×1380×1800 |
| Working envelope (length × width × height) |
mm | 6000×2000×2800~4200 | |
| Mass | t | 14 | |
| Cable | mm² | Class 4 Mine Approved Cable75X3+35X1 | |
| Water pump | kW | WQX15-100-9.2KW | |
