PRODUCT FEATURES
1. The Maitong intelligent slot raise boring machine uses mechanical rock breaking, with a roller cone bit for pilot drilling and a cutterhead for reaming in a one-pass raise completion process. It offers advantages such as safety, high efficiency, low cost, and good raise quality.
2. Structural components are made of high-strength steel with a yield strength of 1000 MPa. The machine features a lightweight and compact design and flexible operation.
3. It is tire-mounted for travel, providing high mobility.
4. Its modular design enables rapid disassembly into sections of less than 3 m and quick reassembly, making it easy to transport in a mine cage.
5. All operating actions are driven by dual modes—wireless/wired remote control and manual handle—with free switching and mutual backup, ensuring high reliability.
Product Parameters
| Item | Unit | Parameter | |
| Rotation parameters | Rotation speed | r/min | 30(Pilot hole boring) / 15(Broaching) |
| Rated torque | kN.m | 53 | |
| Feed parameters | Feed force for pilot hole boring/broaching | kN | 1200 |
| Pull-back force | kN | 1200 | |
| Construction parameters | Upward pilot hole diameter | mm | 280 |
| Maximum raise diameter | mm | 600 | |
| Maximum raise depth | m | ≥120 | |
| Downward reaming | mm | 1500 | |
| Reaming depth | m | ≥120 | |
| Deflection angle | ° | 60~90 | |
| Power pack parameters | Rated voltage | V | 380/660/1140 |
| Rated motor power | kW | 75 | |
| Diesel engine power | kW | 53 | |
| Emission | / | Non-road mobile machinery China III | |
| Tramming parameters | Tramming in low gear | km/h | 1.38 |
| Tramming in high gear | km/h | 3.75 | |
| Gradeability | ° | 14 | |
| Ground clearance | mm | 250 | |
| Control mode | / | Wireless remote control + wired control + lever control | |

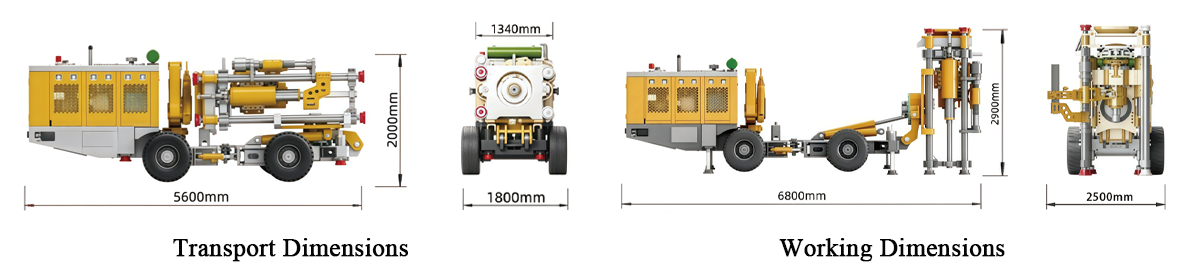

| Machine parameters | Dimensions for tramming (length × width × height) |
mm | 5600×1800×2000 |
| Working envelope (length × width × height) |
mm | 6800×2500×2900 | |
| Mass | t | 15.6 | |
| Cable | mm² | Class 4 Mine Approved Cable75X3+35X1 | |
| Water pump | kW | WQX15-100-9.2KW | |
